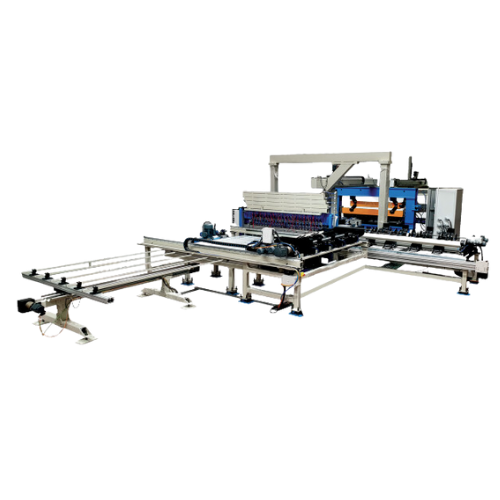

HTP104 – Tam Otomatik Çift Tel Panel Çit Punta Kaynak Makinesi

Öne Çıkan Özellikler

8100 Kg

Ağırlık

5x150 KVA

Anma Gücü %50DT

250 A

Sigorta Akımı

50 - 60 Hz

Frekans

85 KVA

Sürekli Güç %100DT

3-8 Bar

Hava Basıncı

Genel Bakış

High-Performance Welding Solutions for Double Wire Fence Panels

Engineered for strength, speed, and precision in modern double wire fencing applications.

Our double wire fence welding machines are specially designed for producing durable and stable double horizontal wire fence panels used in a wide range of perimeter security applications. The system ensures high-speed, automated welding with consistent quality and supports common wire configurations such as 6/5/6 mm and 8/6/8 mm. With its robust structure, intelligent control systems, and minimal need for manual adjustment, the machine is optimized for efficient and reliable production. Additionally, the same machine model can be converted to produce 3D wire fence panels, offering extra flexibility for manufacturers serving multiple fencing markets.

Optimized Welding for Double Wire Structure

Specially designed to weld two horizontal wires onto a single vertical wire in one pass, ensuring perfect alignment and uniform spacing. This structure provides excellent rigidity and long-term structural integrity.

High-Speed Automation & Control

Equipped with advanced PLC control, servo-driven components, and user-friendly interfaces, the machine supports continuous production at high speeds while minimizing human error and downtime.

Robust Construction for Heavy-Duty Operation

Built using high-grade materials and industrial components, the machine operates reliably under demanding production conditions, ensuring long service life and minimal maintenance.

Versatile Applications Across Sectors

Suitable for a wide range of fencing needs — including industrial zones, logistics centers, residential compounds, schools, and sports facilities — thanks to its flexible design and support for multiple wire thicknesses and panel sizes.

Technical Specifications

Anma Gücü %50 DT

5x150 KVA

Sürekli Güç %100 DT

85 KVA

Primer Gerilim

400V

Frekans

50 - 60Hz

Sekonder Gerilim

7 - 9 V

Sigorta Akımı

250 A

Sekonder Kısa Devre Akımı

32 KA

Piston ve Elektrot Sayısı

26-51

Yatay Tel Aralığı(Atkı Etkili)

50 mm Min. (Programdan)

Elektrot Baskı Kuvveti

Max. 360kg

Hava Basıncı (Min/Max)

5 bar

Dakika Vuruş Sayısı

-

Soğutma Suyu Basıncı

5 bar

Soğutma Suyu Debesi

60 lt/dk.

Yumuşak Çelikte Kaynak Kap

8x6x8 + 5x6x5

Maksimum Izgara Ebat

2500mm x (Opsiyon)

En - Boy - Yükseklik

3350 x 25000 x 3090

Makine Ağırlığı

8100 Kg.

Panel Ölçüsü

2500x2500

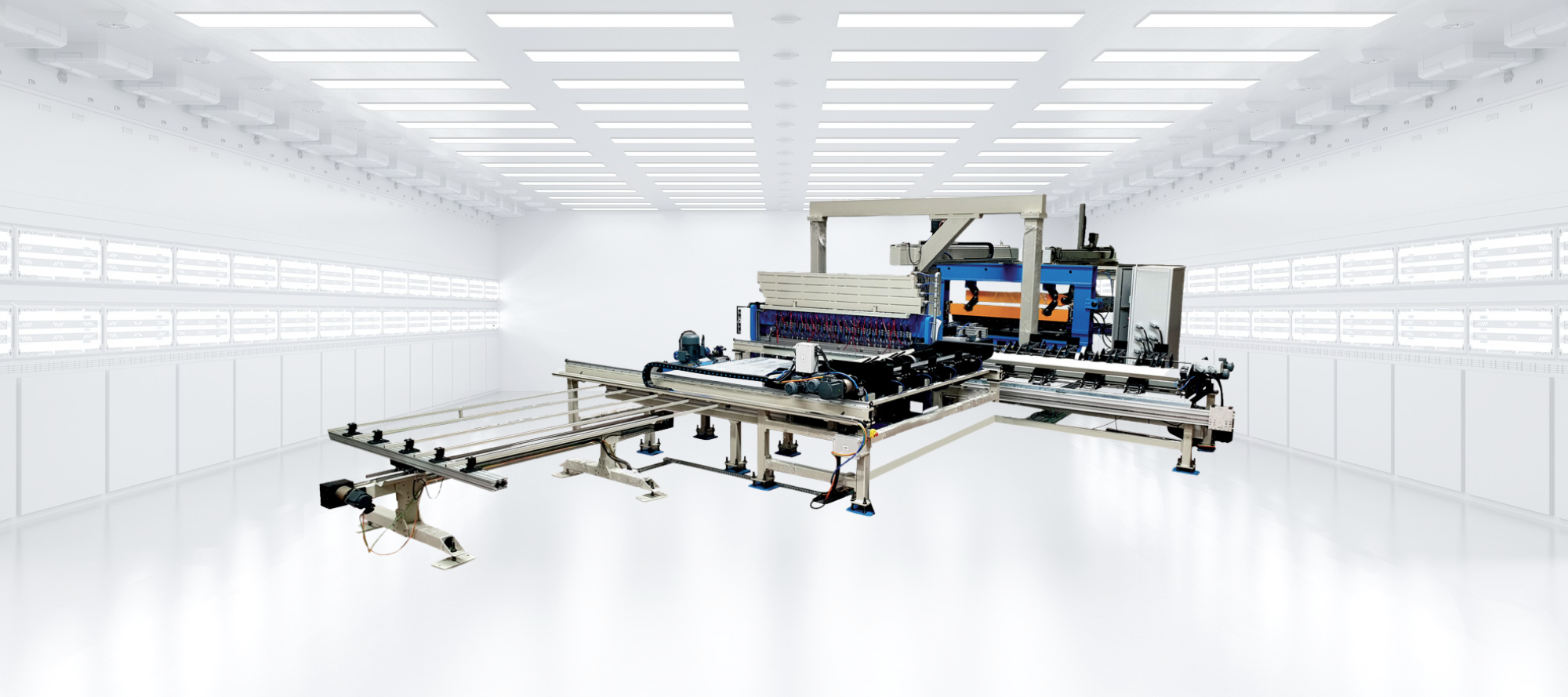

Product Images
